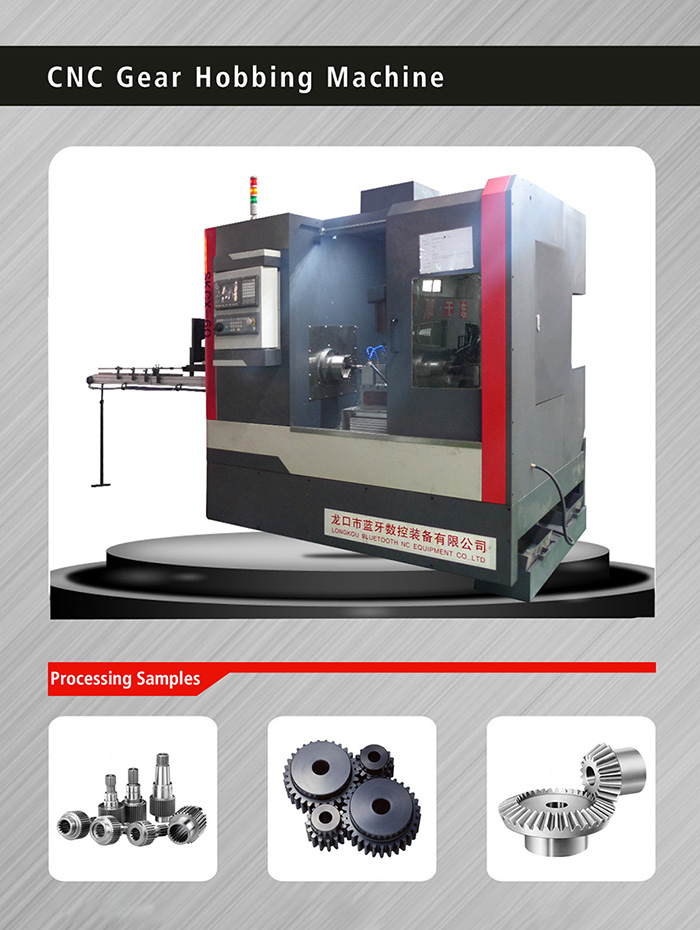

SKCX-30 CNC Gear Hobbing Machine Tool
- Brand: BluetoothCNC
- Type: SKCX-30
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
The SKCX-30 CNC Gear Hobbing Machine Tool can finish different production methods, such as: turning, milling, drilling, deburring and plunge-cutting etc by once clamping.
Application:
Well applied at trucks and car's transmitting gears, gearbox gears, motorcycles and micro car's transmitting gear, such as : cylinderical spur gear, cylinderical helical gear, crowned teeth, turbines, sprocket.
Characteristics:
1. To achieve all the functions of the gear hobbing machine.
2. Control system: Siemens CNC controller.
3. With one clamping, achieve hobbing function and turning function.
4. Carbide cutter with dry type hobbing cutting, high efficiency and environmental protection.
5. Cutter arbor automatic string/channeling.
6. Electronic gearbox: EGB function.
7. Servo axis manual adjustment.
8. Manual adjustment with independent installation hand wheel.
9. Standard communication interface RS232 / RS585 / RS422.
10. Tool automatic bounce protection function against power outage.
11. System self – diagnostic function.
12. Electric box configuration 220V / 50Hz maintenance socket.
13. Independent hydraulic system with liquid temperature display.
14. Independent circulation lubrication system.
15. Independent rail timing quantitative lubrication system.
16. Optional installed gear shaving function, deburring function.
17. Optional installed automatic feeding, automatic unloading unit.
18. Optional installed automatic chip removal unit.
19. Optional installation with customized requirement.
